PowerShaper, 50kW/51kWh, LFP

Pixii

PowerShaper

50kW/51kWh, LFP

Highlights

Robust IP55 industrial cabinet
Safe and stable LFP batteries
Modular and scalable
Galvanic isolation (AC-DC)
European quality & GDPR compliance
Safe ~48V installation and operation

Key functions

Dynamic load balancing
Backup & off-grid operation support
Peak shaving
Electricity market participation

Download datasheet

Požiadajte o cenovú ponuku

Save costs through battery services like peak shaving, PV self-consumption, power boost and backup power.

The BESS that pays for itself by generating revenue from various electricity markets to maximize ROI.

Designed and manufactured in Europe. Combining robust engineering with high-quality components to deliver modular, scalable and reliable energy storage for critical applications and demanding environments.

Our 48V systems are built for always-on operation. Encrypted communications, secure remote access, and full GDPR compliance, enabling uninterrupted connectivity, real-time insight, and maximum ROI through value stacking.

Pixii BESS feature built-in redundancy, active monitoring, and automated recovery protocols. This ensures secure operation even under failure or cyber threat, ideal for mission-critical energy storage needs.

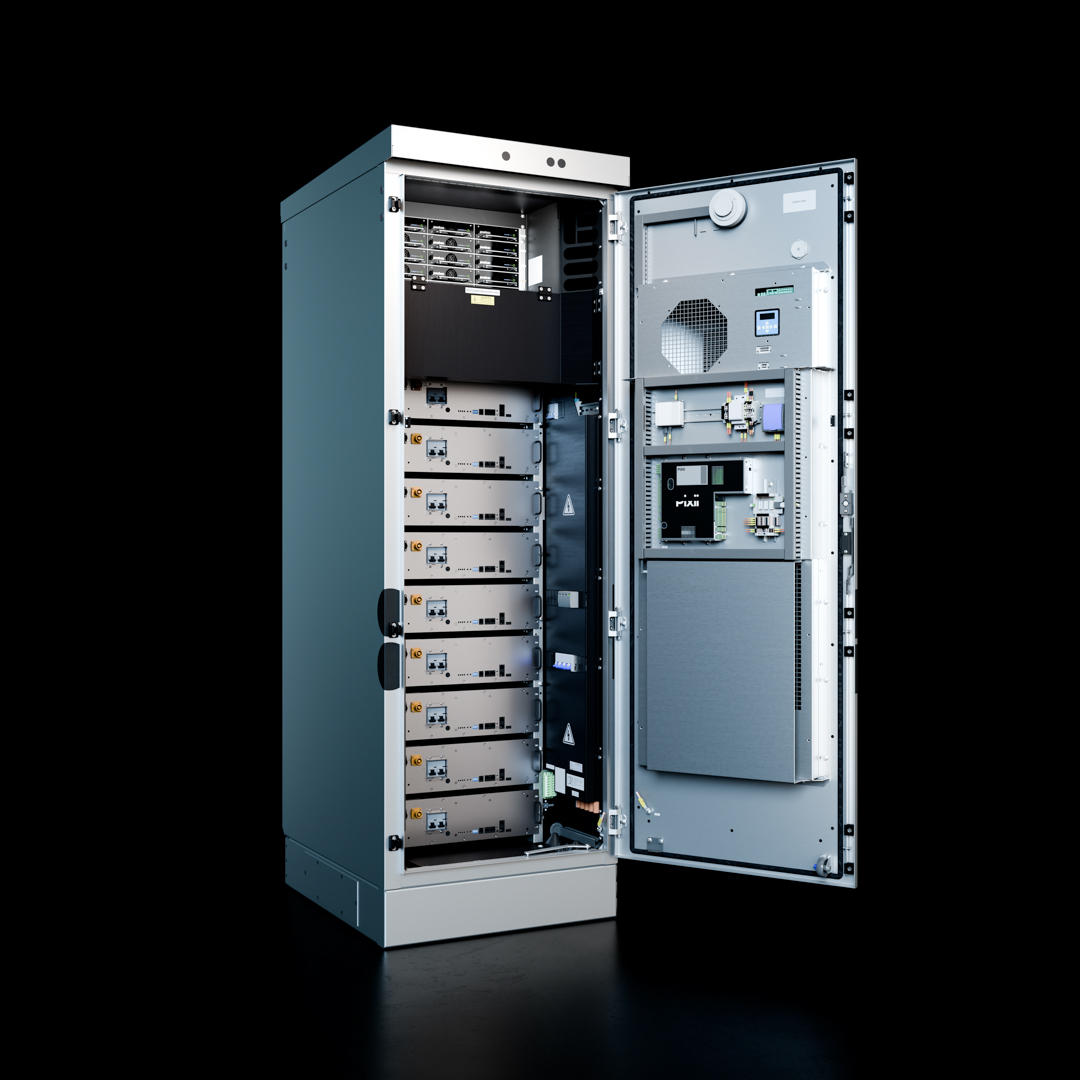

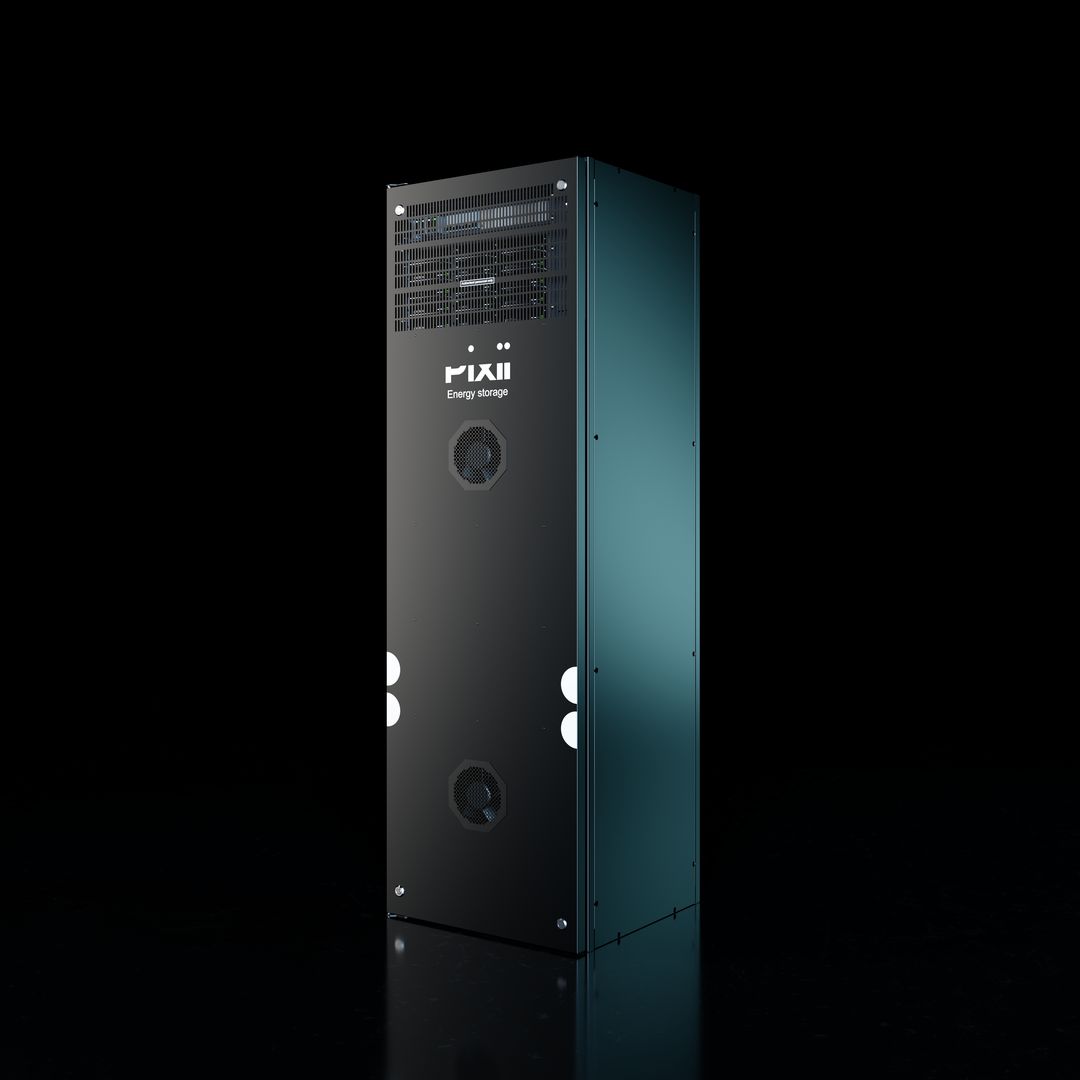

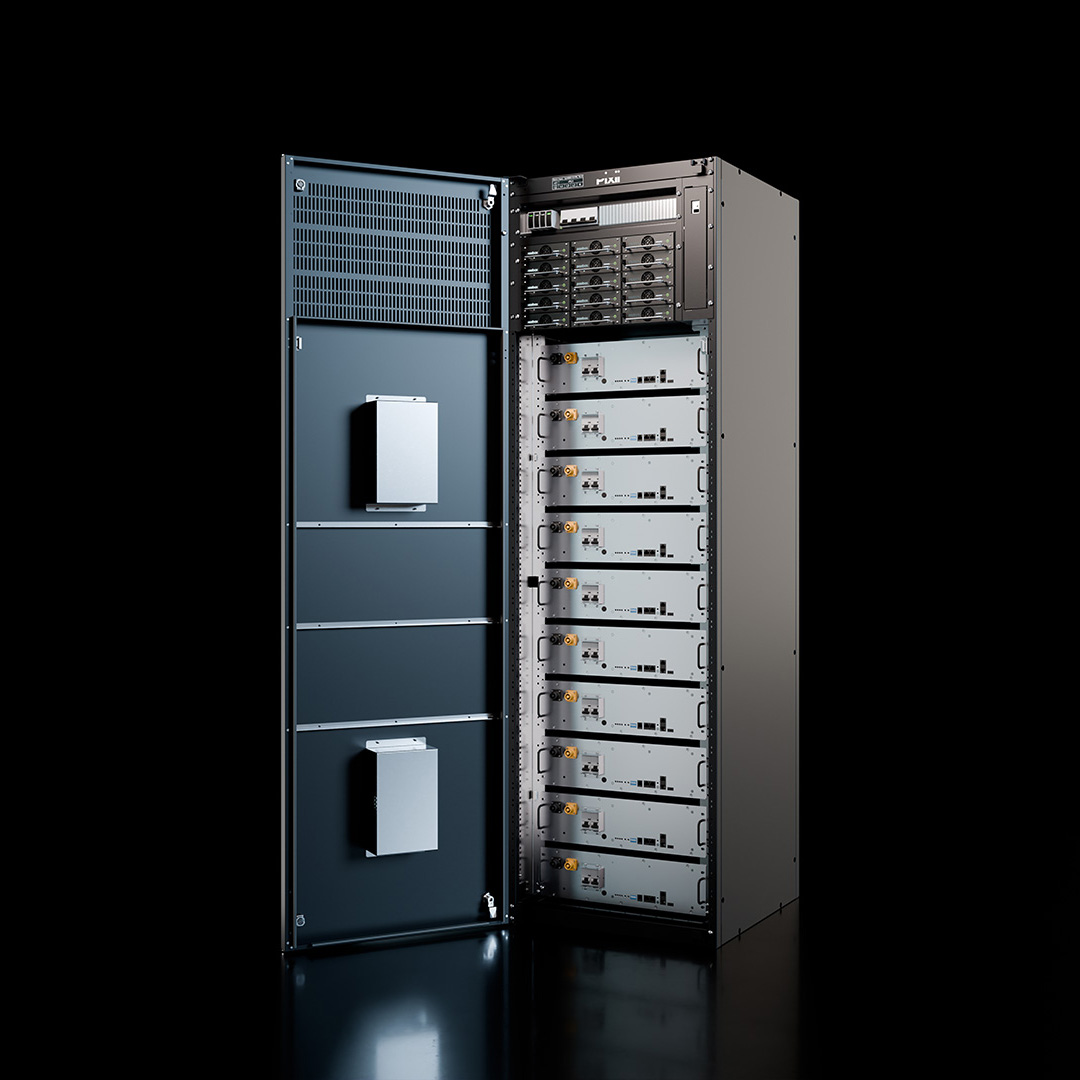

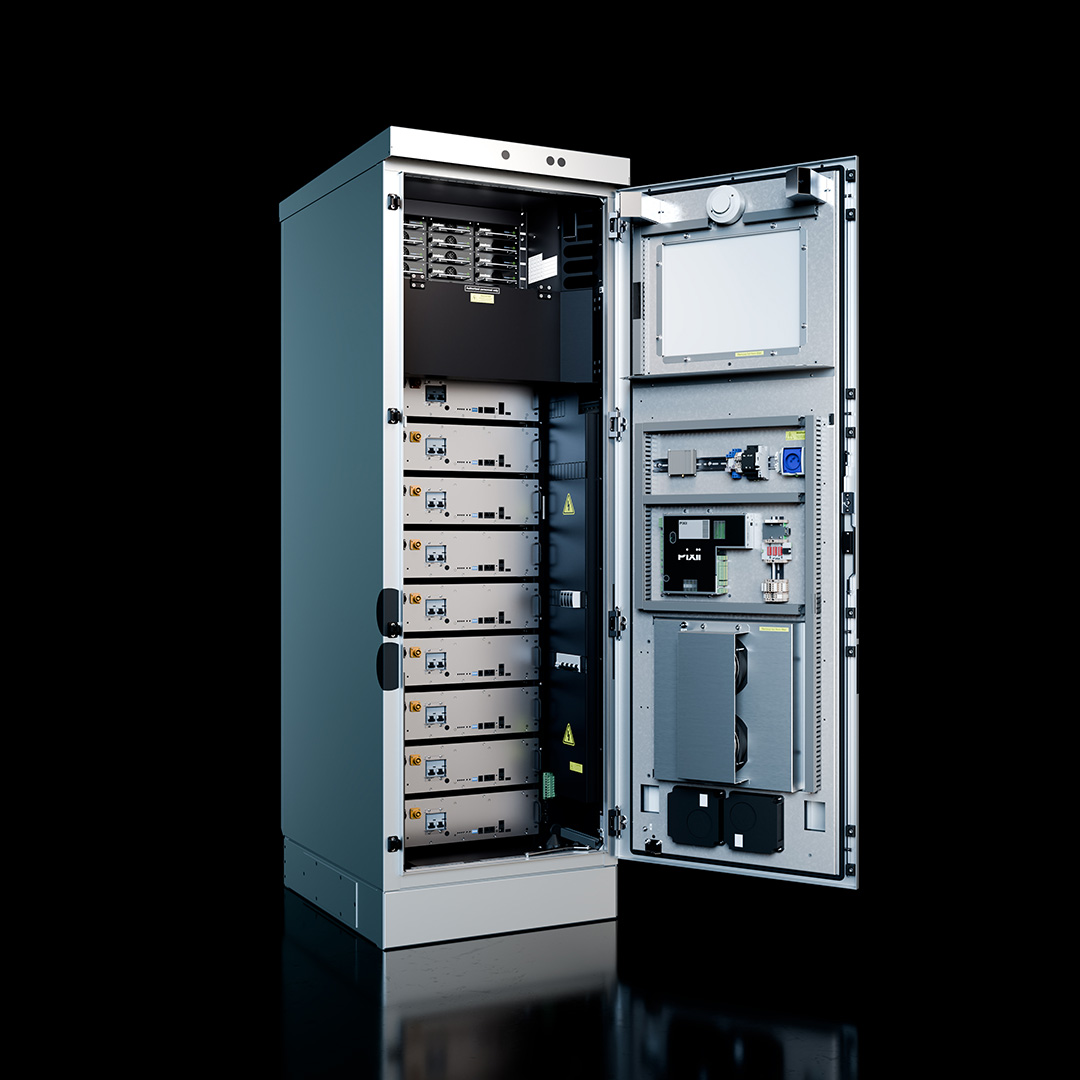

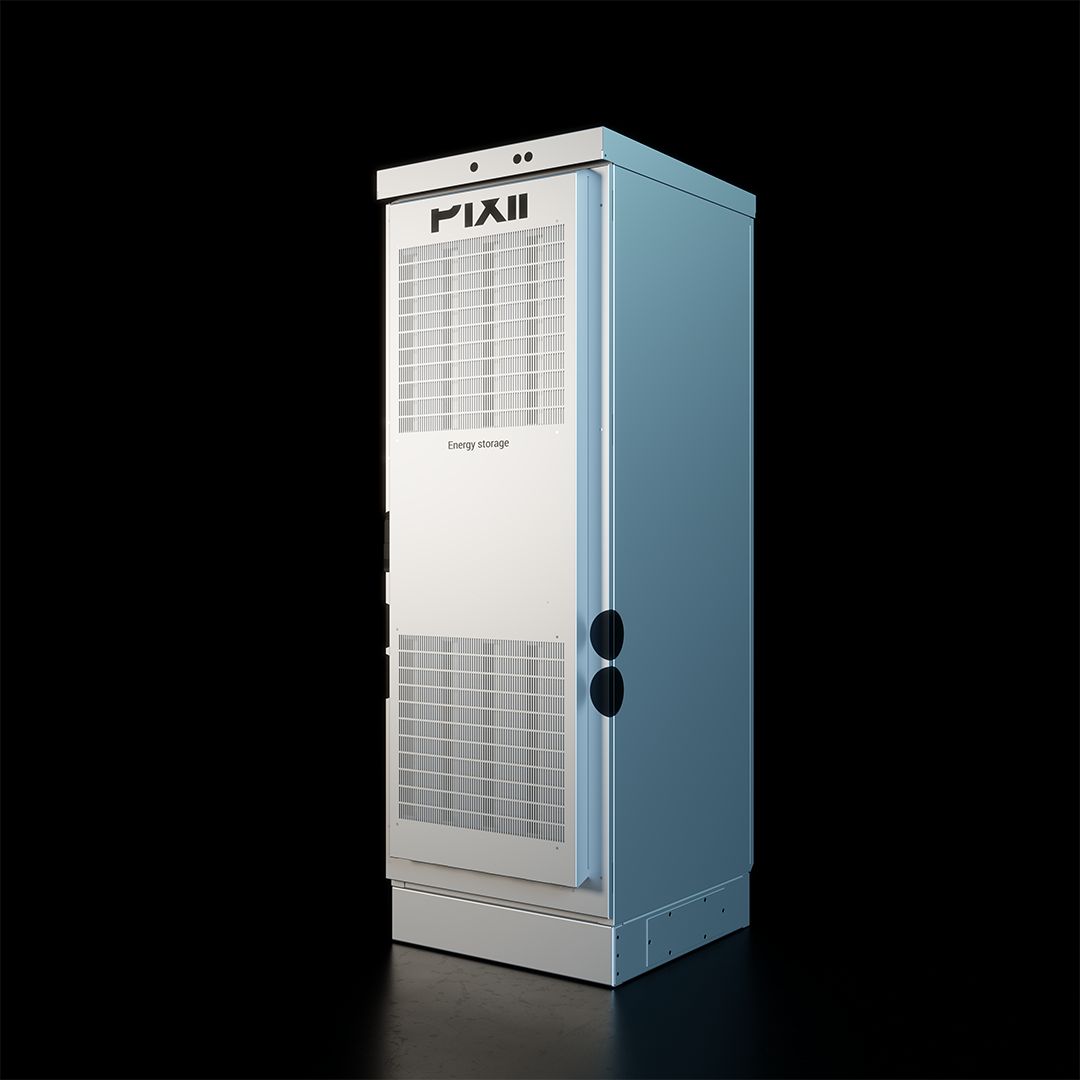

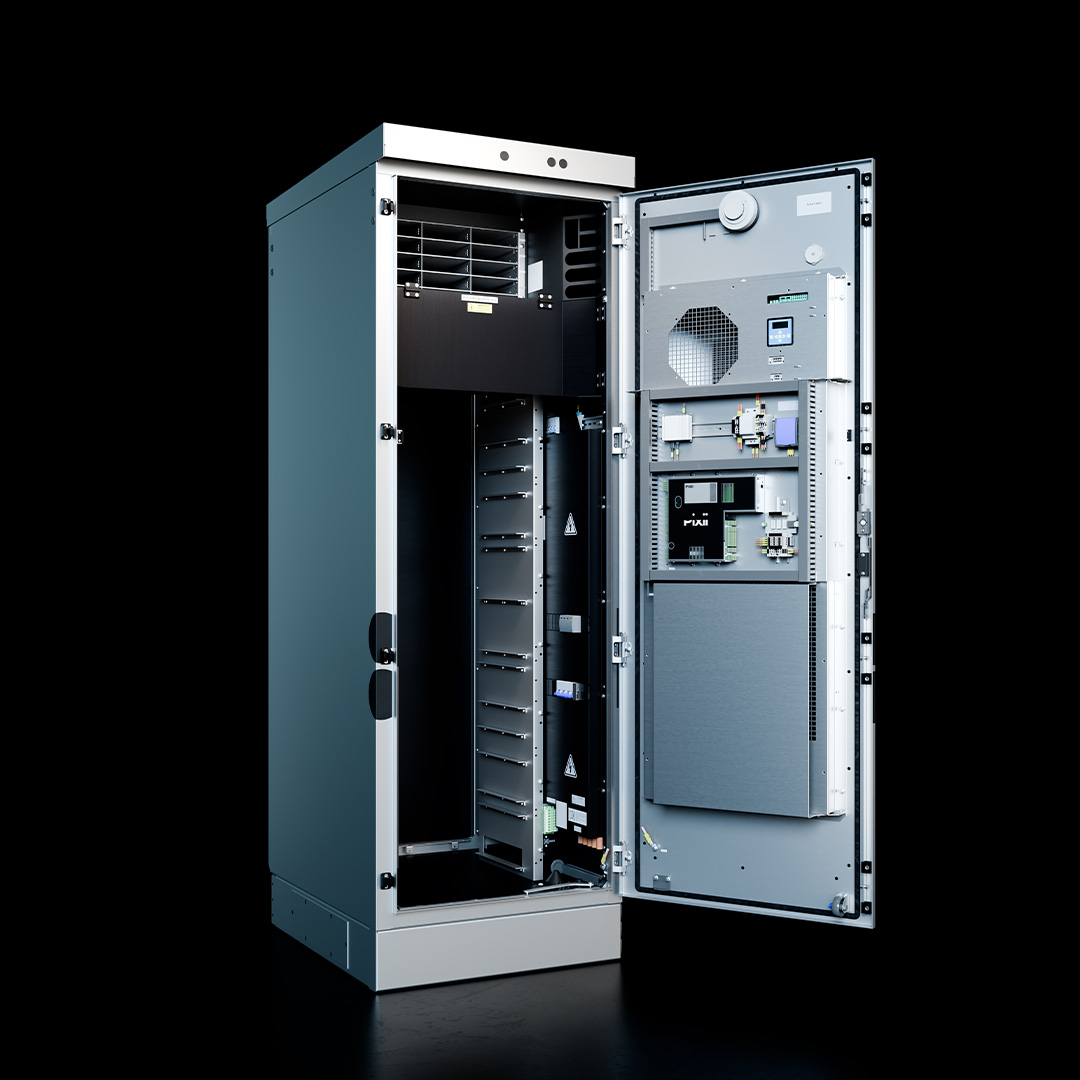

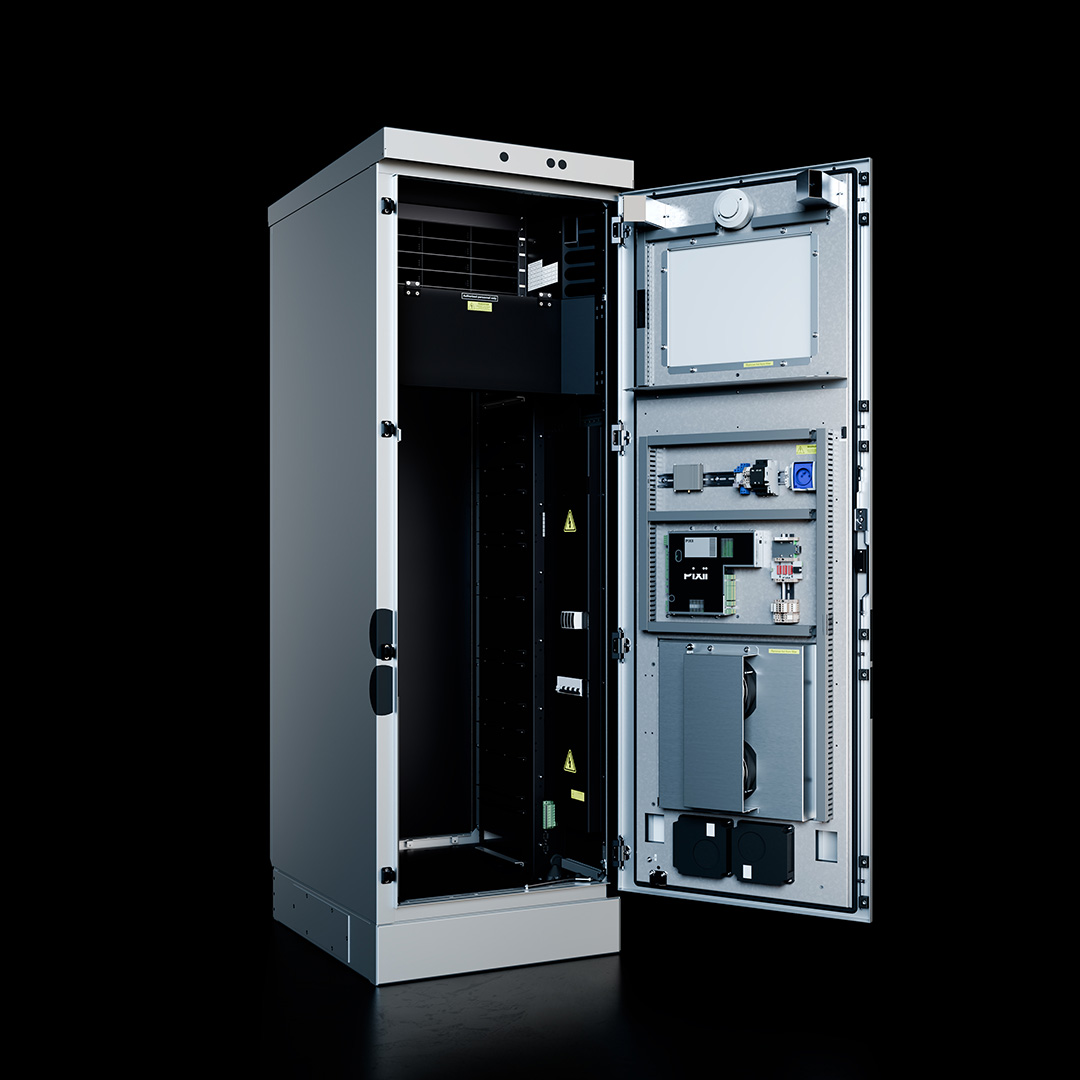

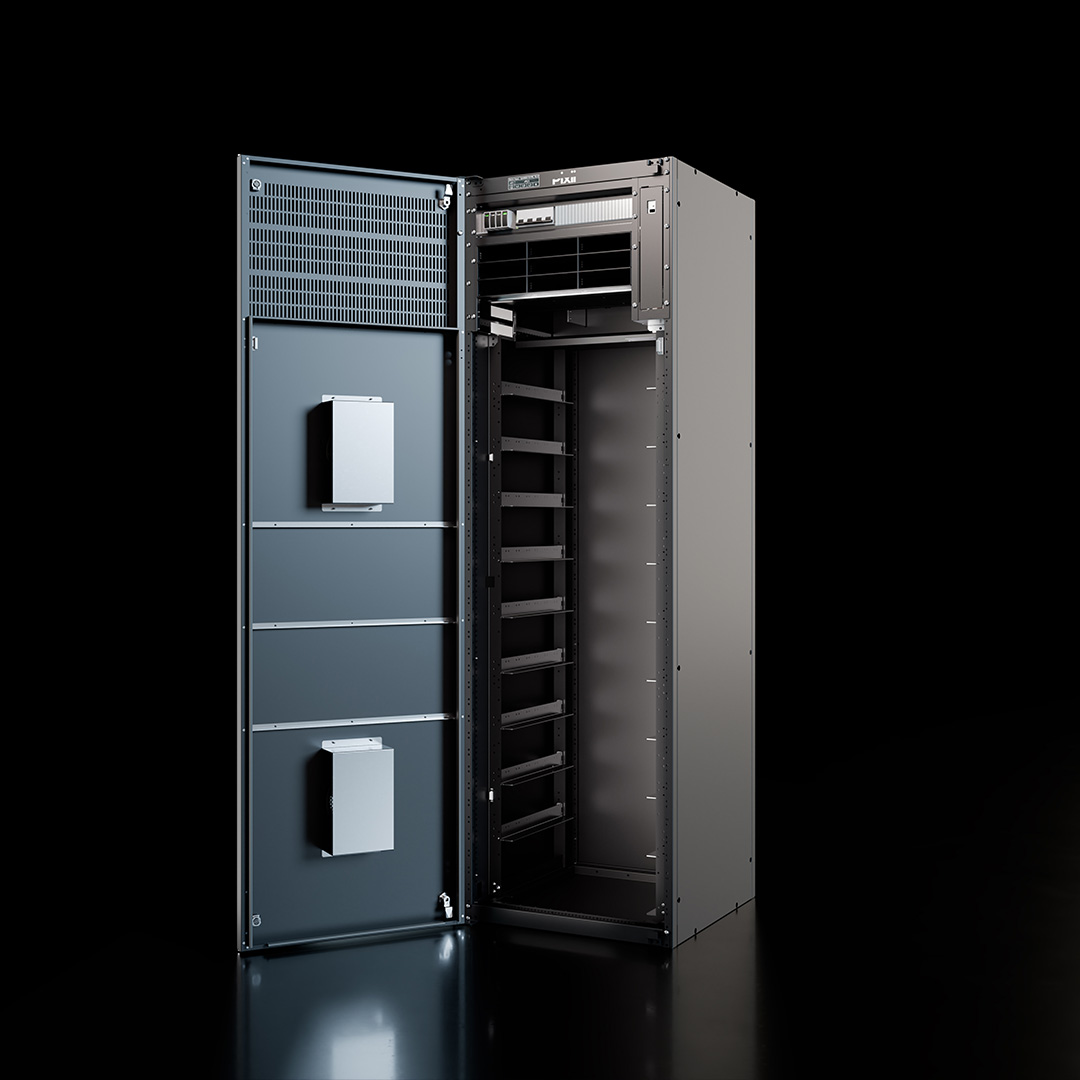

PowerShaper is available in outdoor, indoor, and air-conditioned versions. Scales easily from kW/kWh to MW/MWh with multi-cabinet configurations.

Maintain operations during power interruptions. The system supports off-grid functionality to keep essential loads running when the grid is down. No extra hardware needed.

Grid connection type ²

IT / TT / TN

Phase config. (grid) ³

1ph / 3ph

Nominal AC voltage

230V / 400V

Nominal AC voltage range

207 – 260V

Nominal frequency (grid)

50Hz

Nominal AC current

72Arms (3Ph+N+PE)

Max. AC current (input)

83Arms (3Ph+N+PE)

Nom. cont. AC power (±2%) ¹

50kW

Max. AC power (±2%)

50kWp

Max. apparent power

50kVA

Max. reactive power

45kVAr

Power factor (Cos φ leading)

0.5 – 1

Power factor (Cos φ lagging)

0.5 – 1

THDi (grid connection)

<5%

Off-grid operation support ⁴

Yes

Generator backup support

Yes

Phase config. (genset) ⁵

1ph, 3ph

Frequency range (genset)

45 – 66Hz

1. The stated power and energy capacities are baseline, or nominal, values. Actual performance can vary and may be constrained by several factors, including the state of charge (SoC), state of health (SoH) of the system, as well as thermal conditions.
2. IT/TT connection requires connection kit.
3. A 3-phase connection requires at least three PixiiBoxes, one for each phase.
4. Single cabinet only. Requires off-grid control system. Local modification for load prioritization.
5. A 3-phase connection requires at least three PixiiBoxes, one for each phase.
