PowerBase
600kW/614kWh, LFP
Highlights
  • Pre-wired and pre-configured
  • Safe and stable LFP batteries
  • Modular and scalable
  • Galvanic isolation (AC-DC)
  • European quality & GDPR compliance
  • Safe ~48V installation and operation
Key functions
  • Grid support
  • Peak shaving
  • Balance market participation
  • Electricity market participation

Energy storage for easy site deployment

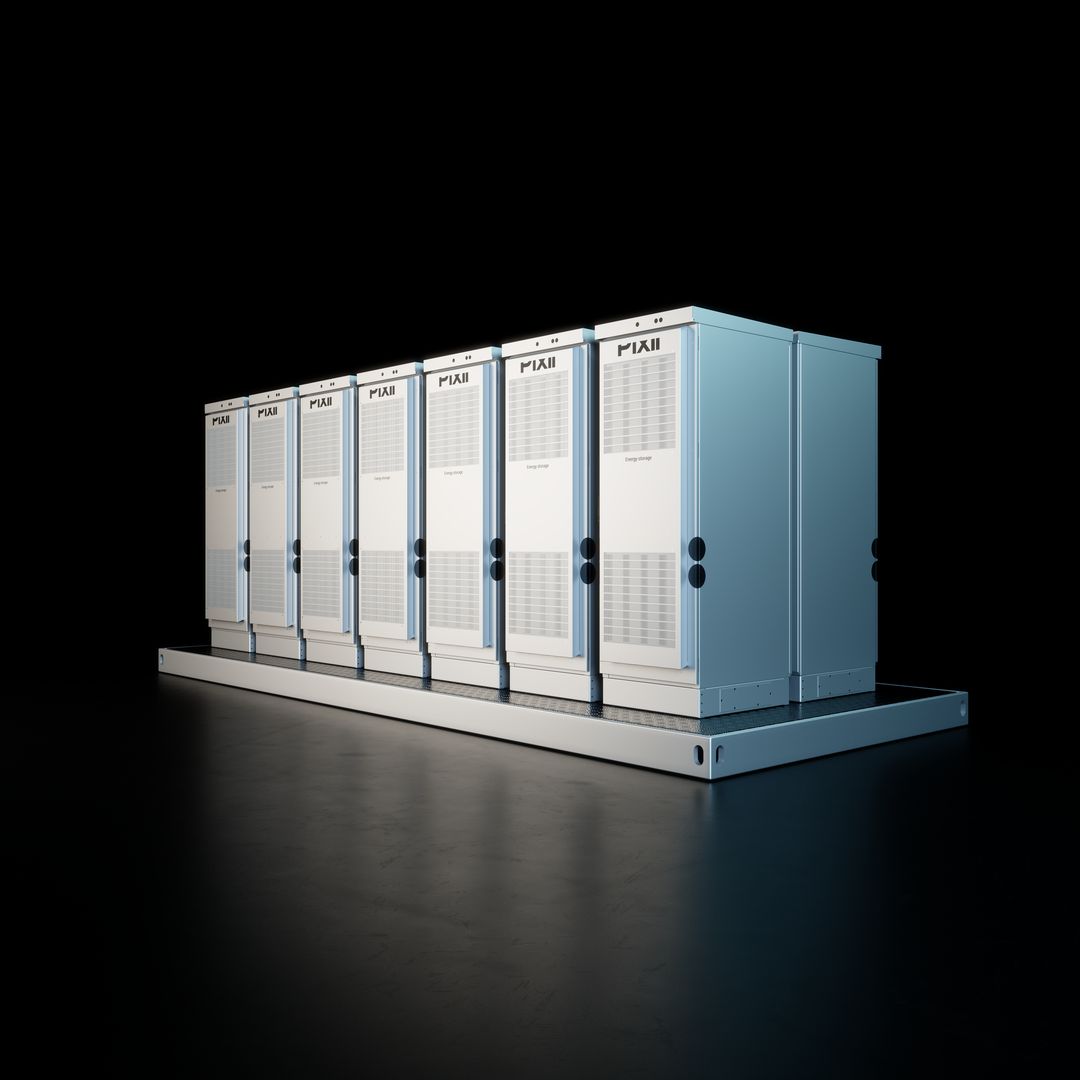

The PowerBase is a robust energy storage system built on a steel frame with the length of a standard ISO 20-foot container. Pre-wired and pre-configured, it minimizes installation costs and delivery time, accommodating up to 12 Pixii PowerShaper cabinets.

Fully integrated, pre-wired and factory configured system that reduces the installation time significantly.
The BESS that pays for itself by earning from electricity markets and saving cost through peak shaving and power boost.
Built for future-proof performance
Designed and manufactured in Europe. Combining robust engineering with high-quality components to deliver modular, scalable and reliable energy storage for critical applications and demanding environments.
Secure, connected, and compliant
Our 48V systems are built for always-on operation. Encrypted communications, secure remote access, and full GDPR compliance, enabling uninterrupted connectivity, real-time insight, and maximum ROI through value stacking.
Resilient by design, reliable in use
Pixii BESS feature built-in redundancy, active monitoring, and automated recovery protocols. This ensures secure operation even under failure or cyber threat, ideal for mission-critical energy storage needs.
Pre-wired, pre-configured
Delivered fully wired and configured with an integrated AC distribution cabinet linking all PowerShaper cabinets. Simplifies installation, speeds deployment, and reduces errors and labor cost signific
Scalable, future-ready solution
Mounted on a transport-ready steel skid for fast handling and placement. PixiiBox power conversion units and battery modules are added on-site, enabling flexible setup and future expansion.
PowerBase 600kW/614kWh, LFP
Download datasheet
AC specifications
Grid connection type
TT / TN
Phase config. (grid) 2
3ph
Nominal AC voltage
400V
Nominal AC voltage range
207 – 260V
Nominal frequency (grid)
50Hz
Nominal AC current
864Arms (3Ph+N+PE)
Max. AC current (input)
996Arms (3Ph+N+PE)
Nom. cont. AC power (±2%) 1
600kW
Max. AC power (±2%)
600kWp
Max. apparent power
600kVA
Max. reactive power
540kVAr
Power factor (Cos φ leading)
0.5 – 1
Power factor (Cos φ lagging)
0.5 – 1
THDi (grid connection)
<5%
Off-grid operation support
No
Generator backup support
No
1. The stated power and energy capacities are baseline, or nominal, values. Actual performance can vary and may be constrained by several factors, including the state of charge (SoC), state of health (SoH) of the system, as well as thermal conditions.
2. A 3-phase connection requires at least three PixiiBoxes, one for each phase.
DC specifications
Efficiency
Communication and connectivity
Safety
Operating conditions
Physical specifications
Battery
Warranty and compliance
PowerBase
PowerBase
600kW/614kWh
LFP
PowerBase
Cabinet only
Fan filter
