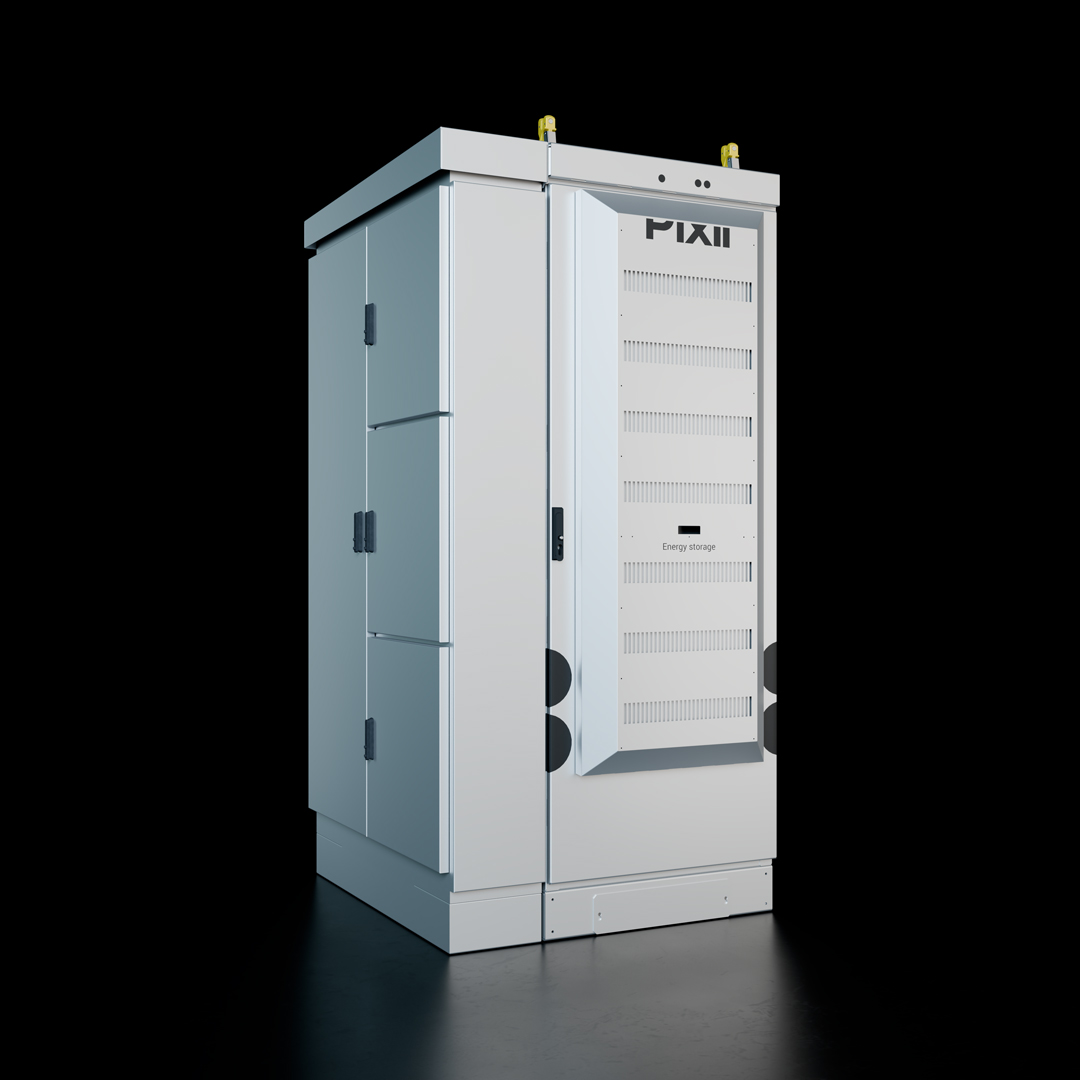

PowerShaper XD
50kW/112kWh, Aircon, LFP
Highlights
  • Shipped with batteries installed
  • UL9540A tested with LFP batteries
  • Modular and scalable
  • Galvanic isolation (AC-DC)
  • Quiet operation at full power
  • Safe ~48V installation and operation
Key functions
  • Hybrid and off-grid configurable
  • Integrated inverter and battery
  • On/off-grid compatible
  • Backup and fast response

Flexible, scalable energy storage

PowerShaper XD is a modular IP55 system for on-grid, off-grid, and hybrid use. Built for solar self-consumption, peak shaving, grid support, and other value-stacking applications.

Fully integrated, pre-wired and factory configured system that reduces the installation time significantly.
EMS for remote monitoring, configuration and control, eliminates the need for complex on-site configuration.
Built for future-proof performance
Designed and manufactured in Europe. Combining robust engineering with high-quality components to deliver modular, scalable and reliable energy storage for critical applications and demanding environments.
Secure, connected, and compliant
Our 48V systems are built for always-on operation. Encrypted communications, secure remote access, and full GDPR compliance, enabling uninterrupted connectivity, real-time insight, and maximum ROI through value stacking.
Resilient by design, reliable in use
Pixii BESS feature built-in redundancy, active monitoring, and automated recovery protocols. This ensures secure operation even under failure or cyber threat, ideal for mission-critical energy storage needs.
Pixii Energy Architect (EMS)
Managing power in on-grid and micro-grid setups. It automatically controls and balances different power sources like solar panels and generators. Tracking battery health, charge level, and energy use.
Air-conditioned system with LFP
This system configuration includes high-energy LFP batteries with up to 145 kWh capacity per cabinet and active air-conditioned cooling. Ideal for warm environments and frequent cycling.
PowerShaper XD 50kW/112kWh, Aircon, LFP
AC specifications
Grid connection type
IT / TT / TN
Phase config. (grid)
1ph / 3ph
AC voltage (-10/+15%)
230V / 400V
Nominal frequency (grid)
50Hz
Max. AC current (input)
8Arms (3Ph+N+PE)
Nom. cont. AC power (±2%)
50kW
Max. AC power (±2%)
60kWp
THDi (grid connection)
<5%
Off-grid operation support
Yes
Generator backup support
No
DC specifications
Efficiency
Communication and connectivity
Safety
Operating conditions
Physical specifications
Battery
Warranty and compliance
