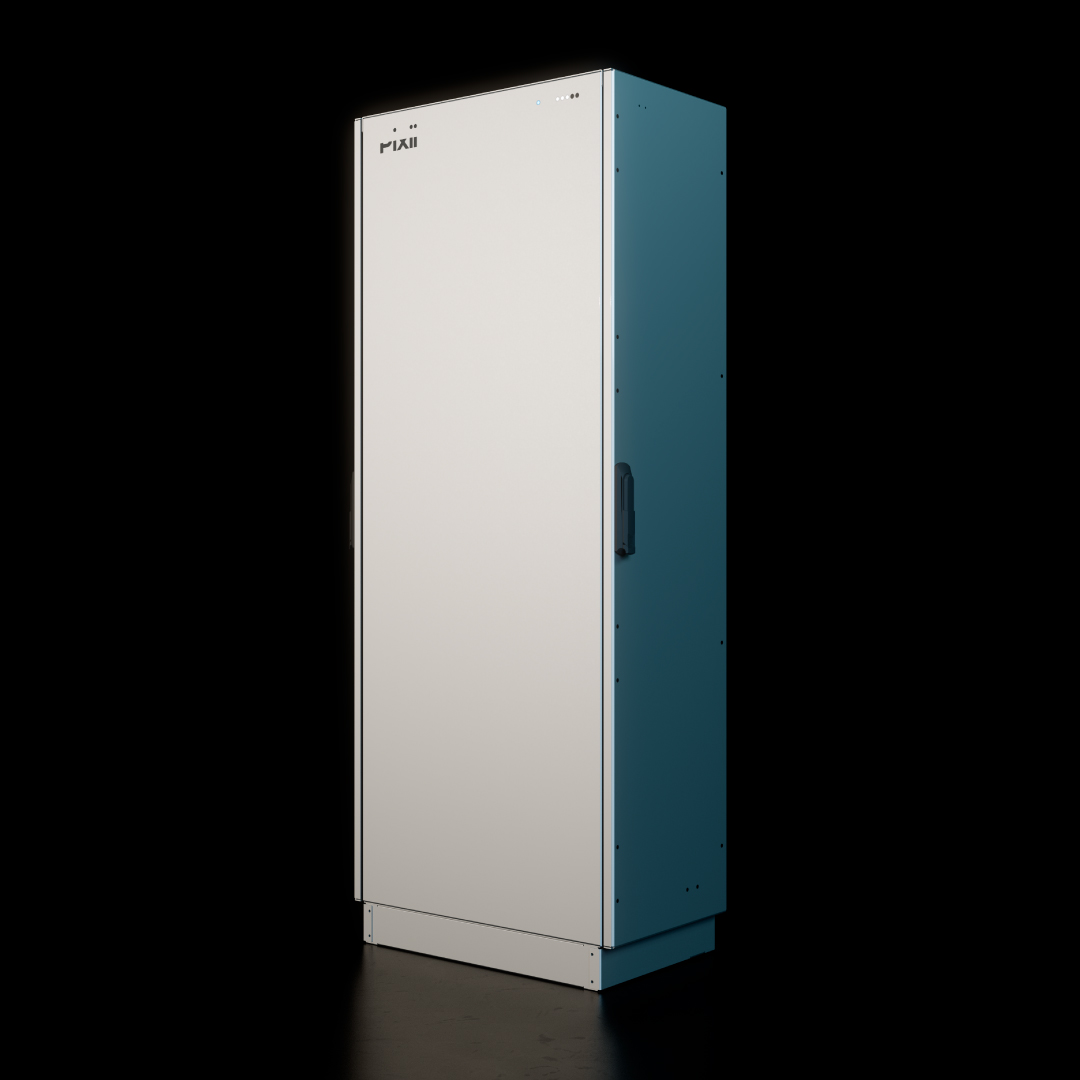

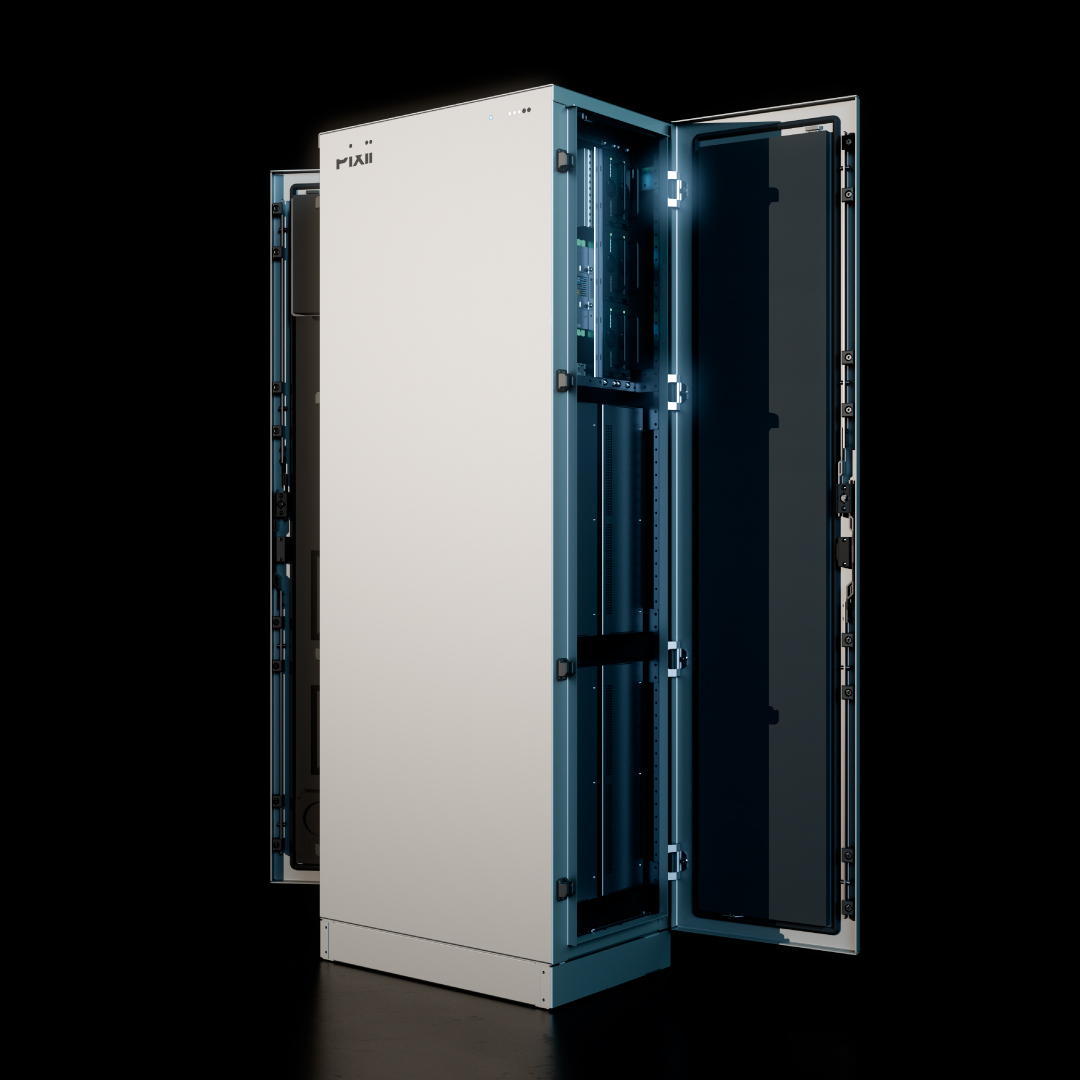

Pixii Home
Energy storage up to 10kW / 20kWh
Configure your system
Output power:
kW
Select location and cooling:
Select battery:
50kW500kW1MW

With rising energy costs, optimizing your energy consumption is more important than ever. The Pixii Home battery energy storage system is quick to install and easy to use, helping you get more out of your solar panels and reduce your dependency on the grid.

Pixii Home is a compact, all-in-one solution that combines cost-saving and revenue-generating functions through value stacking. It connects with most new or existing solar panels, allowing you to store excess energy for later use. With smart features, you can also store grid energy when costs are low and use it when prices rise, cutting down your electricity bills and service fees by shaving off consumption peaks.

A quick guide to the easy installation process of our brand new residential energy storage: Pixii Home.

The PixiiHome App lets you manage your energy use by adding automation and behavior-driven services to your home. Optimize your energy storage and consumption with smart functions like peak shaving, arbitrage, and PV self-consumption, reducing costs while increasing energy efficiency. Pixii Home comes with a 10kW capacity, easily upgradeable to 20kWh with the addition of two batteries and three more PixiiBoxes.

  • Multi-functional software driven converters for unprecedented flexibility and scalability – up to 20kW
  • 48Vdc safe installation and operation
  • 70% capacity guarantee for the first 10 years or 10 000 charging cycles (whichever comes first)
  • Triple level safety protection with battery fuse and battery breaker
  • Batteries with multiple safety measures
  • Plug and play cloud service installation
  • Simple and user-friendly app with extended energy management features
Peak shaving
Reduce your demand charges and save costs by shaving the peaks of your power consumption.
Arbitrage
Support loads from the battery when electricity rates are high, and charge the battery when electricity rates are low.
PV self-consumption
Get the most out of your solar investment and reduce your dependency on the grid through smart power management, enabling you to direct excess energy to batteries for later use during peak hours.
DC or AC coupled solar
Integrated MPPT functionality enables a complete DC coupled hybrid system. Our technology can also operate with most grid tied PV inverters, in on-, or off-grid mode, ensuring optimal value of existing solar installations.
AC back-up
Secure energy independency during power outages or grid restrictions.
Balance services/ Flexibility markets
Unlock the value of your battery energy storage system and monetize your system’s flexibility by offering available capacity to ancillary services like FFR, FCR, standard ramp FCAS services and more.
Performance data
Max power (bi-directional)
18kW to 20kW
Nominal AC voltage
230/400VAC
Scalable battery nominal capacity
10 – 20 kWh
Frequency
50Hz
Nominal battery voltage
48Vdc
Number of cycles (80% DoD)
4 000 cycles
Cabinet protection class
IP 55
Minimum operating temperature
5°C
Minimum ambient temperature
-20° C
Maximum operating temperature
45° C
Maximum ambient temperature
45° C
Dimensions (w x d x h)
387x 684 x 1 717 mm
Weight (fully equipped)
156-246 kg
Altitude
2 000
Applicable standards
Safety
IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62040-1, IEC/EN 62477-1, (Batteries) IEC 62619, UN38.8
Grid
EN 50549-1, TF 3.3.1, (VDE-AR-N 4105, EREC G99)
EMC
EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-3
Environment
ETSI EN 63000, ETSI EN 300 019:2-3 (Class 3.2)
