PowerShaper XL
PowerBase XL
Preconfigured skid, 540kW up to 1,8MWh*
Configure your system
Output power:
kW
Select location and cooling:
Select battery:
50kW500kW1MW

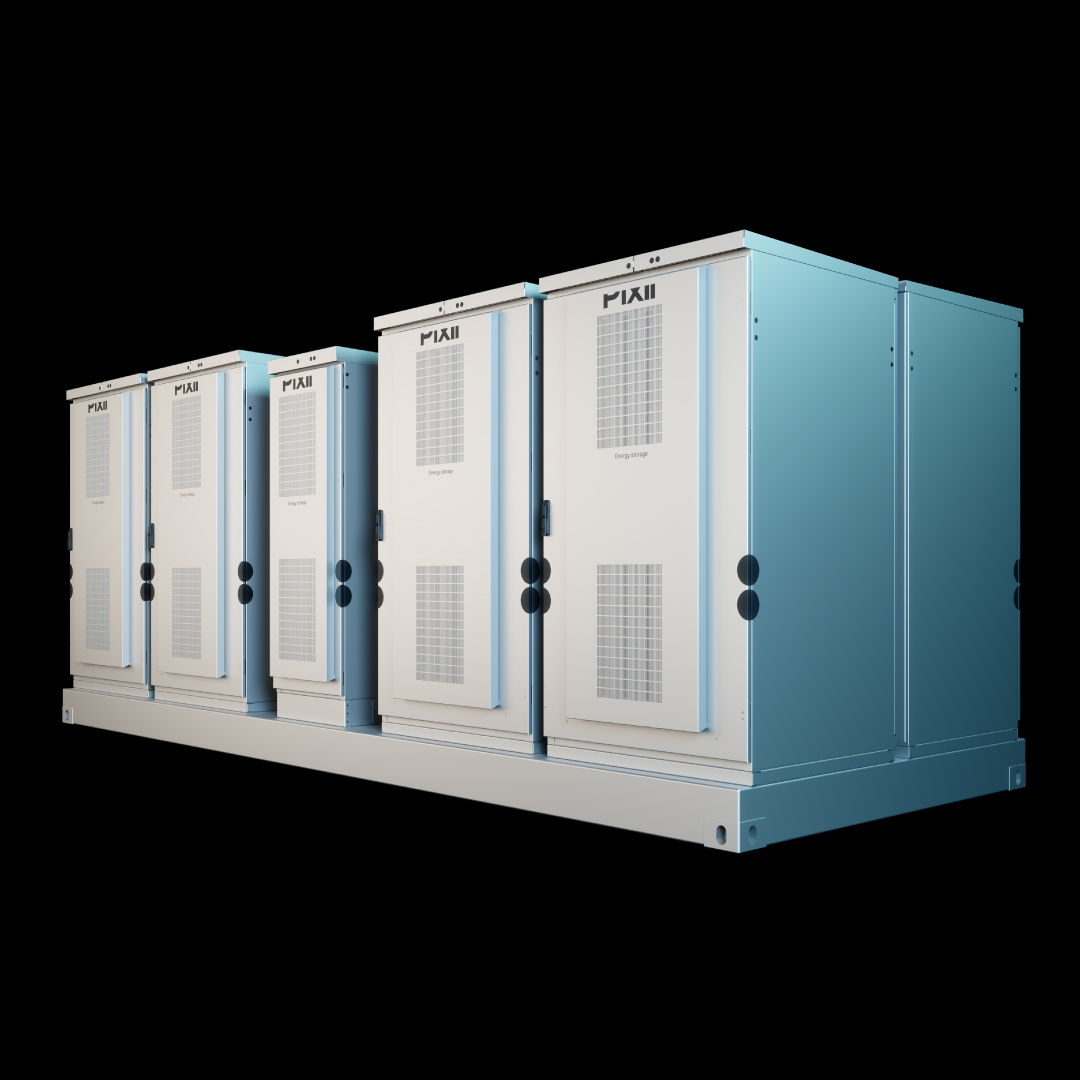

The PowerBase XL is a complete energy storage system on a steel frame.

It can include up to 9 PowerShaper XL cabinets with a maximum capacity up to
530kW and 1,8 MWh.

It is designed for 14,4 kWh LFP batteries to provide an optimal solution for energy density and cost efficiency. The cabinet is designed for transport with batteries installed for minimum battery handling and installation work at site. The PowerBase comes pre-configured from the factory.

The AC distribution cabinet is also installed with all internal wiring to all PowerShaper XL cabinets. The Powerbase XL reduces on site preparations, civil work and installation work significantly.

*The stated power and energy capacities are baseline, or nominal, values. Actual performance can vary and may be constrained by several factors, including the state of charge (SoC), state of health (SoH) of the system, as well as thermal conditions.

  • Modular and scalable
  • Compact energy storage
  • Fast response (charge to discharge)
  • Integrated & battery inverter solution
  • Wide range of functions
  • Galvanically isolated AC to DC
  • 48V battery voltage for ease of service
Voltage support
Enables grid operators (DSO’s/DNO’s/DNSP’s) to enhance quality of supply on long weak lines significantly. Unique functionality for voltage-based phase balancing active/reactive power compensation.
Peak shaving
Reduce your demand charges and save costs by shaving the peaks of your power consumption.
Arbitrage
Support loads from the battery when electricity rates are high, and charge the battery when electricity rates are low.
PV self-consumption
Get the most out of your solar investment and reduce your dependency on the grid through smart power management, enabling you to direct excess energy to batteries for later use during peak hours.
Performance data
Max Power (bi-directional)
Up to 530kW / 1,8MW
Nominal AC voltage
400VAC
Frequency
50Hz
Max AC current
864A
Communications protocols
MQTT, Modbus TCP, 4G, Wi-Fi +
Environmental management
Fan Cooled (Aircon Optional)
Minimum operating temperature
-20 °C
Maximum operating temperature
45 °C
Dimensions (w x d x h)
6334 x 2338 x 2477 mm
Weight (fully equipped)
20 tons
Cabinet protection class
IP 55
Color
RAL7035
Application standards
Safety
IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62040-1, IEC/EN 62477, (Batteries) IEC 62619, IEC 62368, UN38.3, RPEQ Mechanically certified for lifting, Load Restraint Guide 2018 for Transportation
Grid
AS/NZS 4777-2:20202), EN50549-1:2019 Type A & B, VDE-AR-N 4105:2018-112), VDE-AR-N 4110:2018-11 (prototype), EREC G99 Issue 1 – Amendment 6, 09 March 20202)
EMC
IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
Environment
ETSI EN 300 019:2-1 (Class 1.2), ETSI EN 300 019:2-2 (Class 2.3), ETSI EN 300 019:2-3 (Class 3.2)
