Industrial
PowerShaper XL
60kW up to 200kWh*
Configure your system
Output power:
kW
Select location and cooling:
Select battery:
50kW500kW1MW

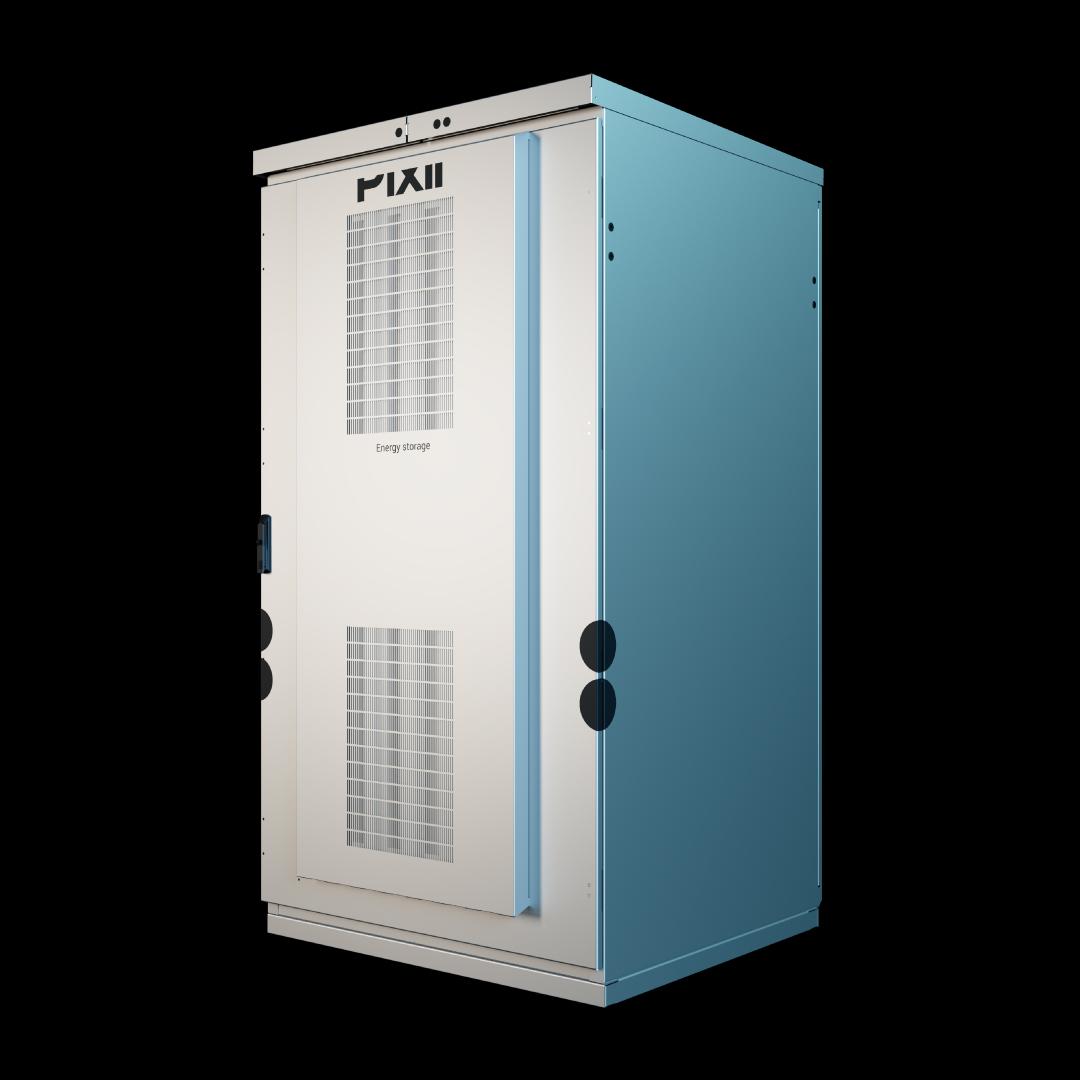

The PowerShaper XL is an IP55 complete modular energy storage system
designed for energy oriented applications.

It is fully integrated and ready to be connected to the grid for applications as solar self-consumption, demand charge reduction, peak shaving, arbitrage and various ancillary services.
Designed for shipment with batteries installed.

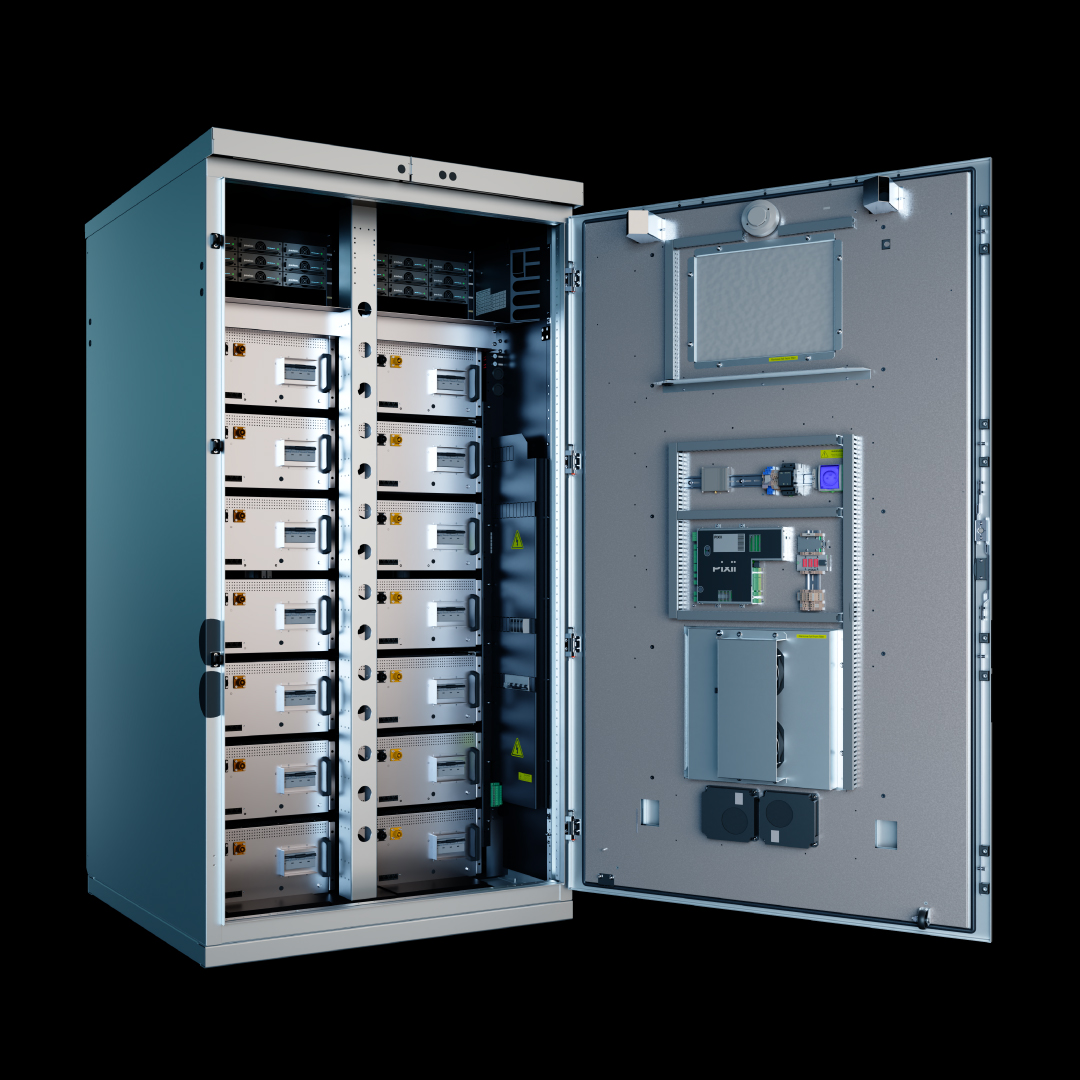

Each cabinet can house up to 60kW of power conversion and up to 200kWh with LFP batteries. The PowerShaper XL can provide a variety of cost and energy saving functions as well as grid supporting services. These functions can be executed autonomously or controlled by commands and settings
from higher level energy management systems communicating over different protocols.

*The stated power and energy capacities are baseline, or nominal, values. Actual performance can vary and may be constrained by several factors, including the state of charge (SoC), state of health (SoH) of the system, as well as thermal conditions.

  • Modular and scalable
  • Compact energy storage
  • Fast response (EV charging support, frequency response etc.)
  • Integrated & battery inverter solution
  • Designed for shipment with batteries installed
  • Wide range of functions
  • Galvanically isolated AC to DC
  • 48V battery voltage for ease of service
Voltage support
Enables grid operators (DSO’s/DNO’s/DNSP’s) to enhance quality of supply on long weak lines significantly. Unique functionality for voltage-based phase balancing active/reactive power compensation.
Peak shaving
Reduce your demand charges and save costs by shaving the peaks of your power consumption.
Arbitrage
Support loads from the battery when electricity rates are high, and charge the battery when electricity rates are low.
PV self-consumption
Get the most out of your solar investment and reduce your dependency on the grid through smart power management, enabling you to direct excess energy to batteries for later use during peak hours.
Performance data
Max Power (bi-directional)
Up to 60kW / 200kWh
Nominal AC voltage
400VAC
Frequency
50Hz
Max AC current (60kW)
96A
Nominal DC voltage
~48V
Max DC current (60kW)
1350A
Communications protocols
MQTT, Modbus TCP, 4G, Wi-Fi +
Minimum operating temperature
-20 °C
Maximum operating temperature
45 °C
Dimensions (w x d x h)
1200 x 950 x 2300 mm
Weight (fully equipped)
2000 kg
Cabinet protection class
IP 55
Color
RAL7035
Environmental management
Fan Cooled (Aircon Optional)
Application standards
Safety
IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62040-1, IEC/EN 62477, (Batteries) IEC 62619, IEC 62368, UN38.3, RPEQ Mechanically certified for lifting, Load Restraint Guide 2018 for Transportation
Grid
AS/NZS 4777-2:20202), EN50549-1:2019 Type A & B, VDE-AR-N 4105:2018-112), VDE-AR-N 4110:2018-11 (prototype), EREC G99 Issue 1 – Amendment 6, 09 March 20202)
EMC
IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
Environment
ETSI EN 300 019:2-1 (Class 1.2), ETSI EN 300 019:2-2 (Class 2.3), ETSI EN 300 019:2-3 (Class 3.2)
