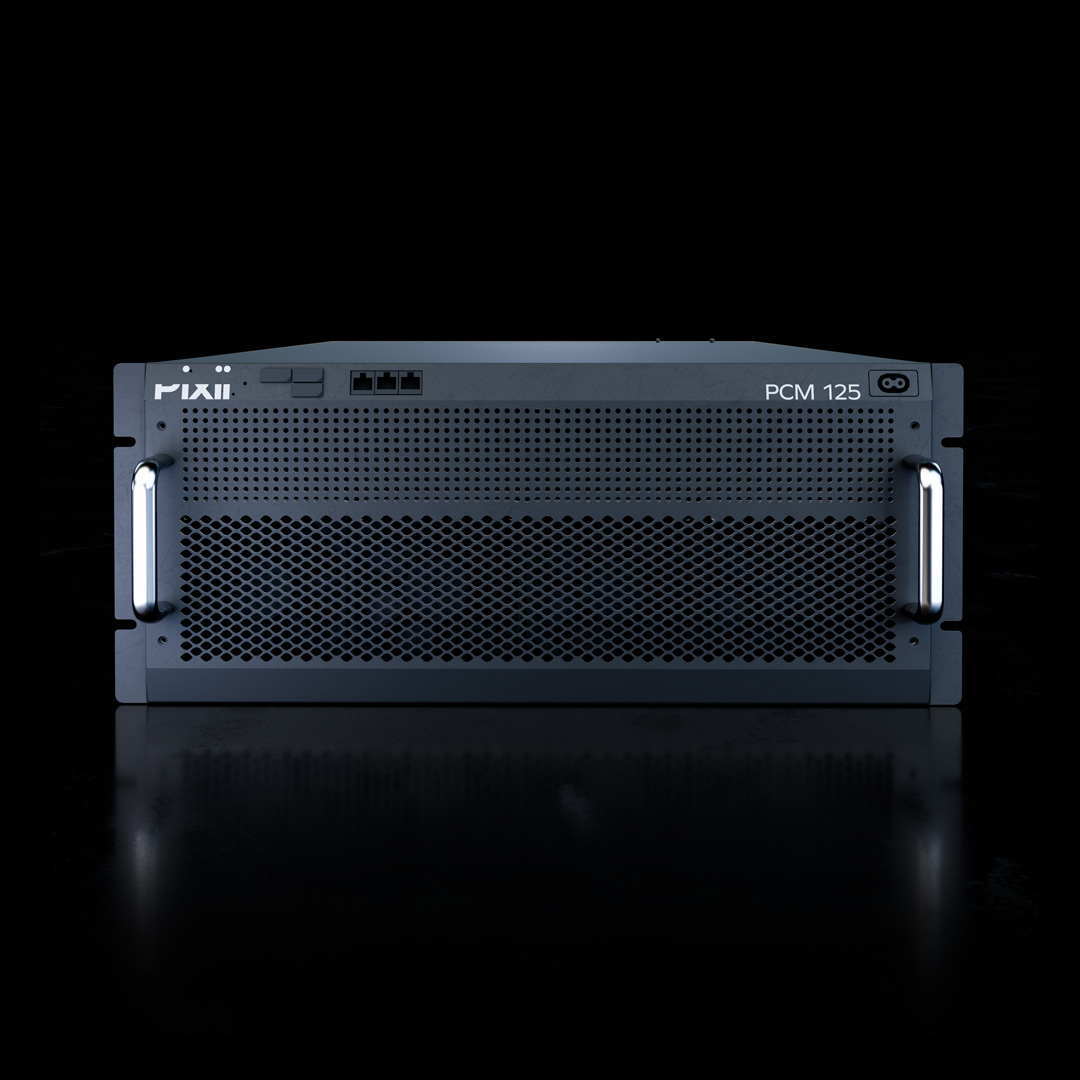

Power Conversion Module | 125kW

Download datasheet Request quote

Back

Output power:

Select location and cooling:

Select battery:

Request quote

50kW500kW1MW

High efficiency bi-directional power conversion module for off-grid and micorgrid applications.

The Pixii PCM 125 delivers high efficiency and stability. Its modular and flexible design supports various system configurations, while intelligent control and grid-friendly features ensure reliable and adaptable energy management with the Pixii Energy Architecht EMS.

Peak efficiency of 98.8%, with an online rate of 99% and a utilization rate of 99%, providing exceptional efficiency and operational stability

Ideal for microgrid and off-grid
enviroments with easy integration of renewable energy sources

Stable, efficient, and versatile power performance

The Pixii PCM 125kW delivers clean, stable power even with grid distortion up to 20% THDu, maintaining current distortion below 3% THDi for high efficiency and reliability. It handles 100% unbalanced loads and direct-on-line motor starts with inrush currents up to 8× nominal, ensuring smooth off-grid performance. With modular, scalable design and robust construction, it integrates seamlessly into grid-tied, microgrid, off-grid, and hybrid systems.

Specifications Highlights Typical applications

AC specifications

Grid connection type

IT/TN

Phase config. (grid)

3ph

Wiring method

3 ph. 3-wire / 3 ph. 4-wire

AC voltage (±15%)

230/400V

Nominal frequency (grid)

50/60Hz

Nominal AC current @400Vac

200A

Nom. cont. AC power (±2%)

125kW

Overload rating (long term, 110%)(1)

137.5kW

Overload rating (1min, 120%)

150kW

Overload rating (150ms, 150%)

187.5kW

Max. apparent power

137.5kVA

Power factor(2)

-1 – +1

THDi (grid connection)

<3%

Off-grid operation support

Yes

Generator backup support

Yes

Phase config. (genset)

3ph

Frequency range (genset)

45 – 55Hz

1) Temperature limited 2) Full 4 quadrant operation

DC specifications

Operating voltage range (3-wire AC)

615 ~ 950Vdc

Operating voltage range (4-wire AC)

650 ~ 950Vdc

Max. DC current

203A

Efficiency

Max. efficiency

98.5%

Communication and connectivity

Wired interfaces

Ethernet LAN, RS 485, CAN

Safety

Ingress Protection (IP)

IP20

Overvoltage category (OVC)

Class III

Max. short-circuit current

297A @11ms

Operating conditions

Thermal management

Fan

Acustic noise @1m. distance

<65dB(A)

Operating temp. range(1)

-30 – +55°C

Operating rel. humidity(2)

0 – 95% NC

Max. operation altitude(3)

4000m

1) Derating from 45°C 2) Non-condensing 3) Derating >2000m

Physical specifications

Dimensions (HxWxD)(mm)

232x520x725

Net. weight

64.5 kg

Color

RAL 9005

Status indicator type

LED

Warranty and compliance

Security and safety standards

GB/T 34120-2017, GB/T 34133-2017, IEC/EN 62477-1, IEC/EN 62116, IEC/EN 62109-1

Grid standards(1)

AS/NZS 4777.2 (AU+NZ), VDE-AR-N 4105 (DE), VDE-AR-N 4110 (DE), VDE-AR-V 0124-100 (DE), VDE-AR-V 4120 (DE), IEC/EN50549-1 Type A & B (EU), EREC G99 Type A & B (UK), EREC G99 Type C & D Upgrade (UK), UNE 217001 (ES), UNE 217002 (ES)

EMC standards

IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4

Standard warranty(2)

5 years(2)

1) Designed in accordance with the relevant national and international standards listed above. Certification to specific revisions available on request. Additional local requirements may apply. 2) Warranty terms may vary based on your SLA agreement. Please review the warranty document for details.

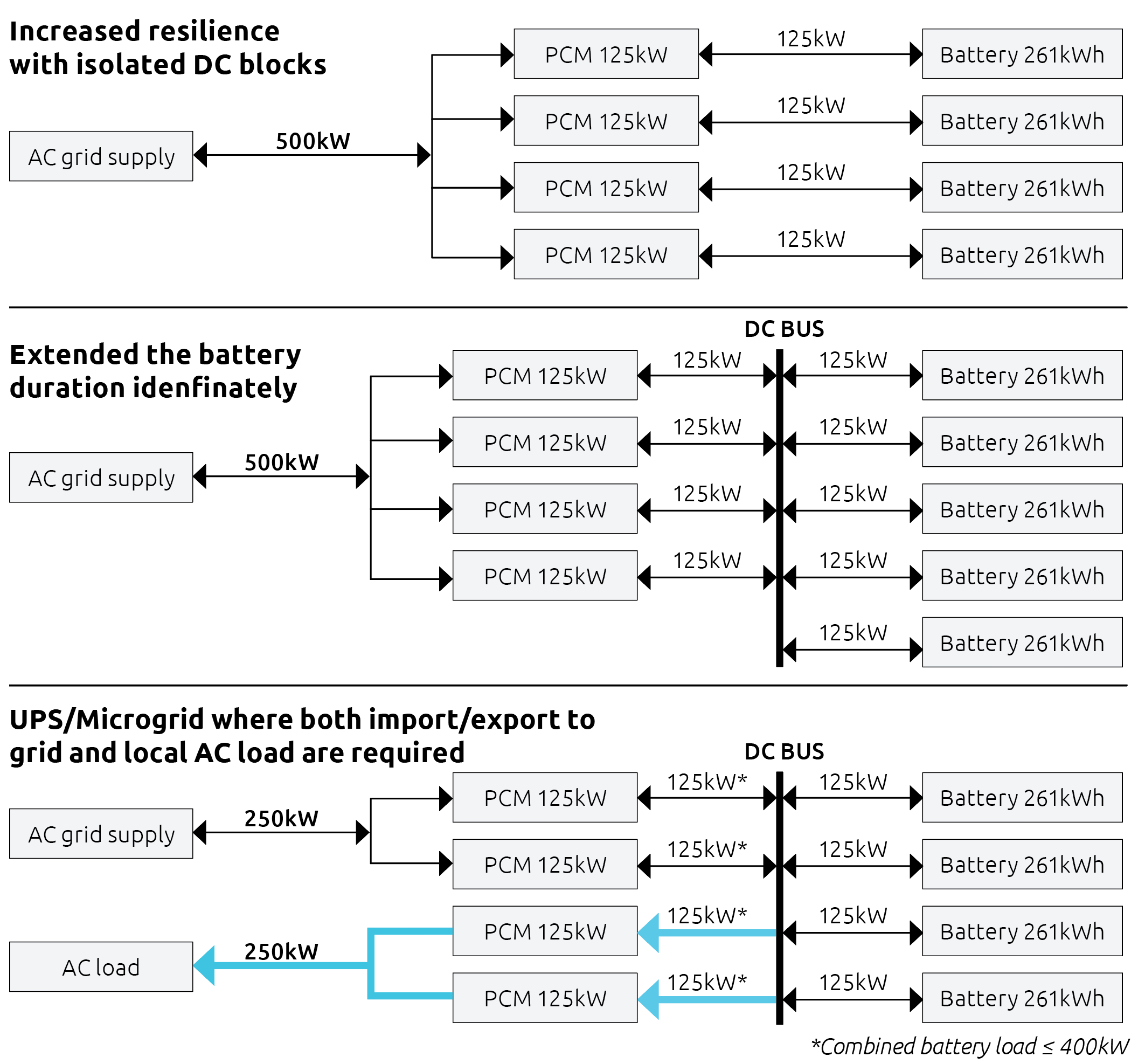

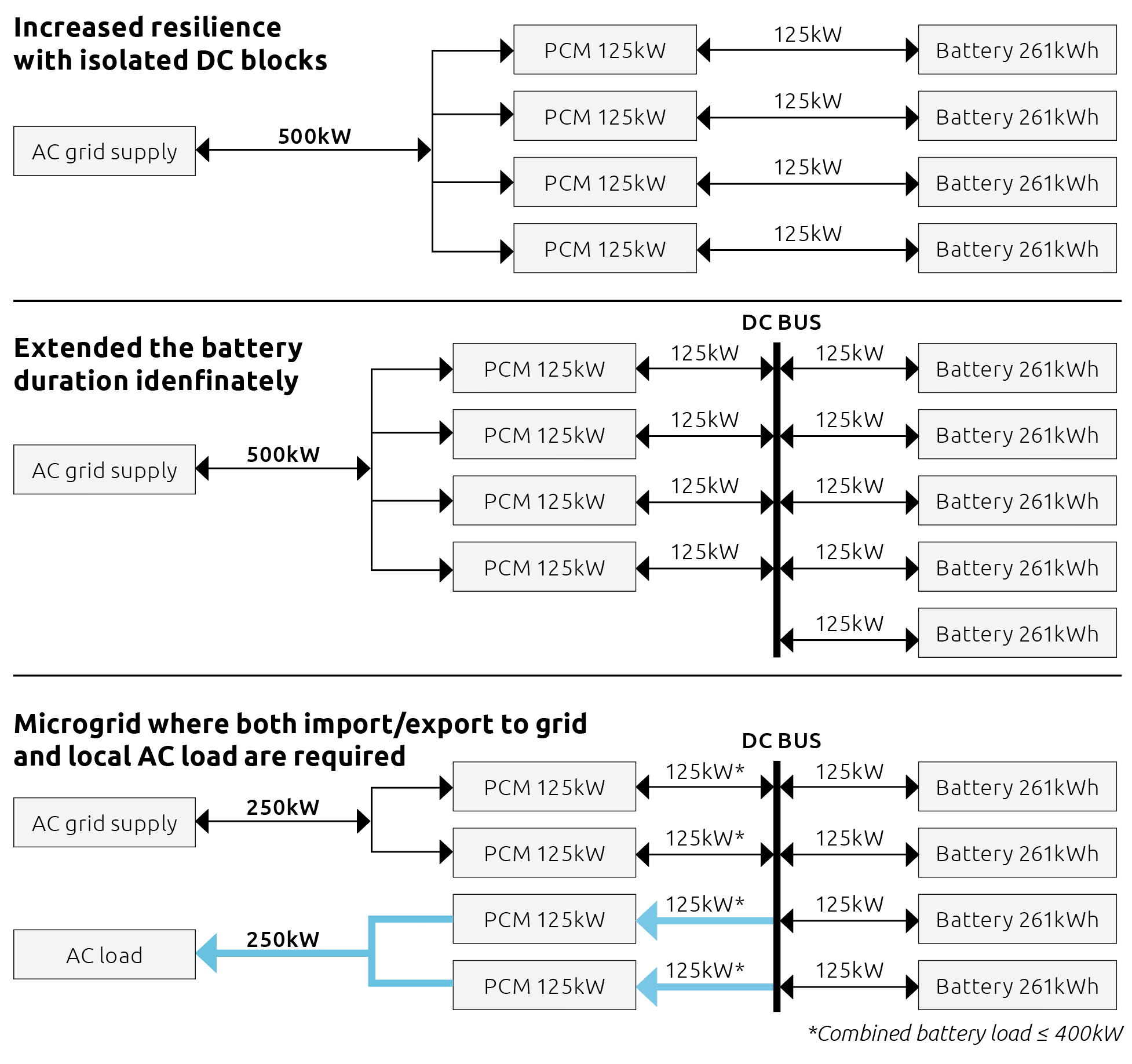

High efficiency & fast response
