Industrial
PowerShaper XL ID
50kW up to 288kWh*
Configure your system
Output power:
kW
Select location and cooling:
Select battery:
50kW500kW1MW

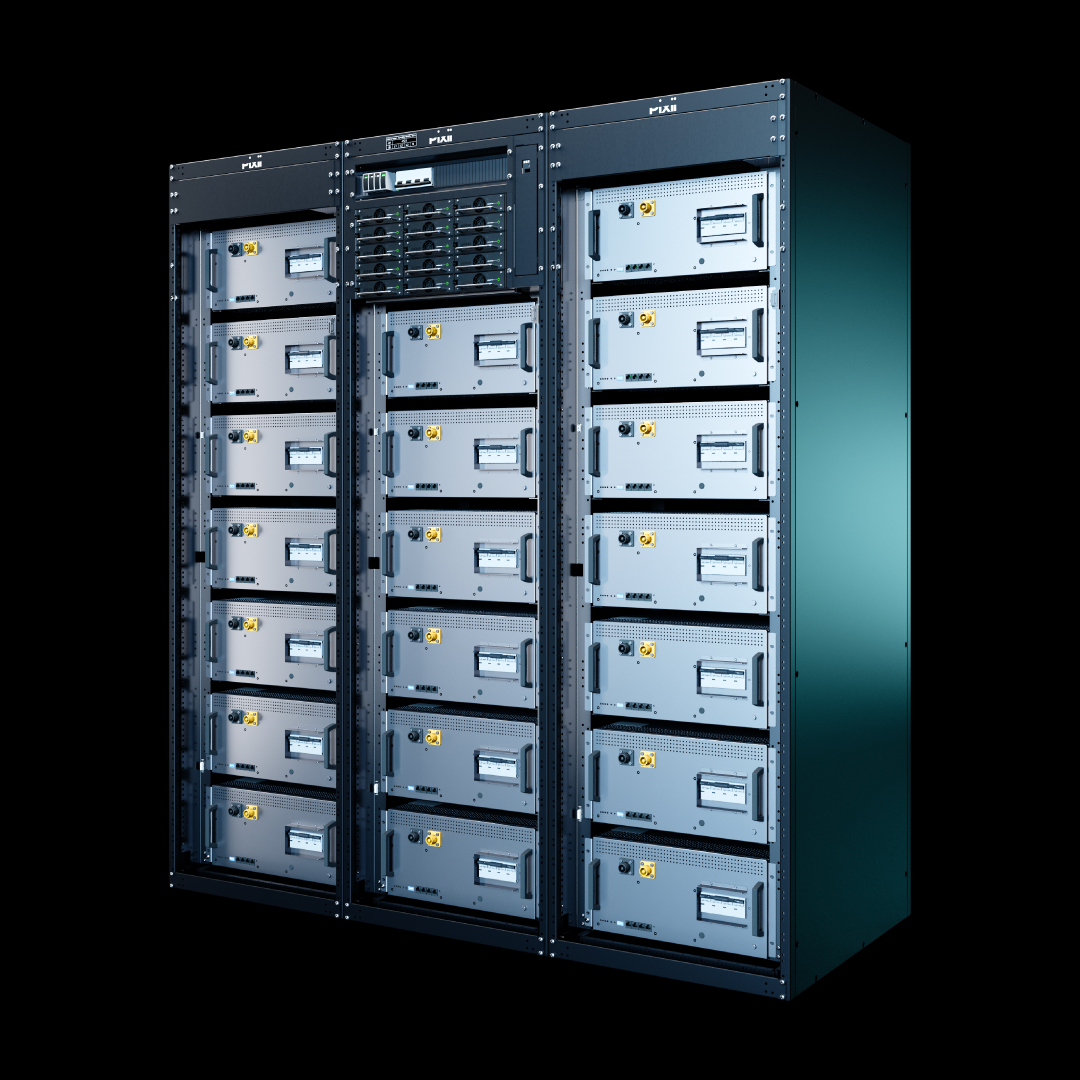

The PowerShaper XL Indoor from Pixii, is a complete modular energy storage system designed for energy oriented application.

It is fully integrated with and ready to be connected to the grid for applications as solar self
consumption, demand charge reduction, peak shaving, arbitrage and various ancillary services.

The system consist 2 battery cabinets and one cabinet with bi-directional inverter modules and batteries. The system can be equipped with up to 50kW inverter capacity and 288kWh of energy storage capacity.

The PowerShaper XL Indoor can provide a variety of cost and energy saving functions as well as grid
supporting services. These functions can be executed autonomously or controlled by commands and
settings from higher level energy management systems communicating over different protocols.

The power conversion in the PowerShaper XL is achieved using the Pixiibox, a bidirectional 3,3kW AC/DC converter module. There is room for up to 15 PixiiBoxes in the power/battery cabinet.

The system includes the Pixii Gateway controller providing advanced monitoring and control applications
as well as communication and interoperability via the internet, wifi or the wireless network.

For applications requiring more power or energy, several systems can be connected together and operated as one.

*The stated power and energy capacities are baseline, or nominal, values. Actual performance can vary and may be constrained by several factors, including the state of charge (SoC), state of health (SoH) of the system, as well as thermal conditions.

  • Modular and scalable
  • Compact energy storage
  • Fast response (EV charging support, frequency response etc.)
  • Integrated & battery inverter solution
  • Designed for shipment with batteries installed
  • Wide range of functions
  • Galvanically isolated AC to DC
  • 48V battery voltage for ease of service
Voltage support
Enables grid operators (DSO’s/DNO’s/DNSP’s) to enhance quality of supply on long weak lines significantly. Unique functionality for voltage-based phase balancing active/reactive power compensation.
Peak shaving
Reduce your demand charges and save costs by shaving the peaks of your power consumption.
Arbitrage
Support loads from the battery when electricity rates are high, and charge the battery when electricity rates are low.
PV self-consumption
Get the most out of your solar investment and reduce your dependency on the grid through smart power management, enabling you to direct excess energy to batteries for later use during peak hours.
Performance data
Max Power (bi-directional)
50 kW
Nominal AC voltage
400VAC
Frequency
50Hz
Max AC current (50kW)
80A
Nominal DC voltage
~48V
Max DC current (50kW)
1125A
Minimum operating temperature
0 °C
Maximum operating temperature
45 °C
Dimensions (w x d x h)
3 x 600 x 850 x 2000mm
Weight (fully equipped)
2400 kg
Cabinet protection class
IP 20
Communications protocols
MQTT, Modbus TCP, 4G, Wi-Fi +
Application standards
Safety
IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62040-1, IEC/EN 62477, (Batteries) IEC 62619, IEC 62368, UN38.3
Grid
AS/NZS 4777-2:20202), EN50549-1:2019 Type A & B, VDE-AR-N 4105:2018-112), VDE-AR-N 4110:2018-11 (prototype), EREC G99 Issue 1 – Amendment 6, 09 March 20202)
EMC
IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
Environment
ETSI EN 300 019:2-1 (Class 1.2), ETSI EN 300 019:2-2 (Class 2.3), ETSI EN 300 019:2-3 (Class 3.2)
