    PIXIIPowerBase
    Preconfigured energy storage up to 600kW
    Configure your system
    Output power:
    kW
    Select location and cooling:
    Select battery:
    50kW500kW1MW

    Unlock the flexibility market with our quick to deploy energy storage system, and scale to your needs.

    With the electrification of society comes an increase in power demand and a push for more renewables. So you need a flexible battery energy storage system that is quick to deploy and easy to scale, with smart services, unlocking the flexibility market and creating new revenue streams.

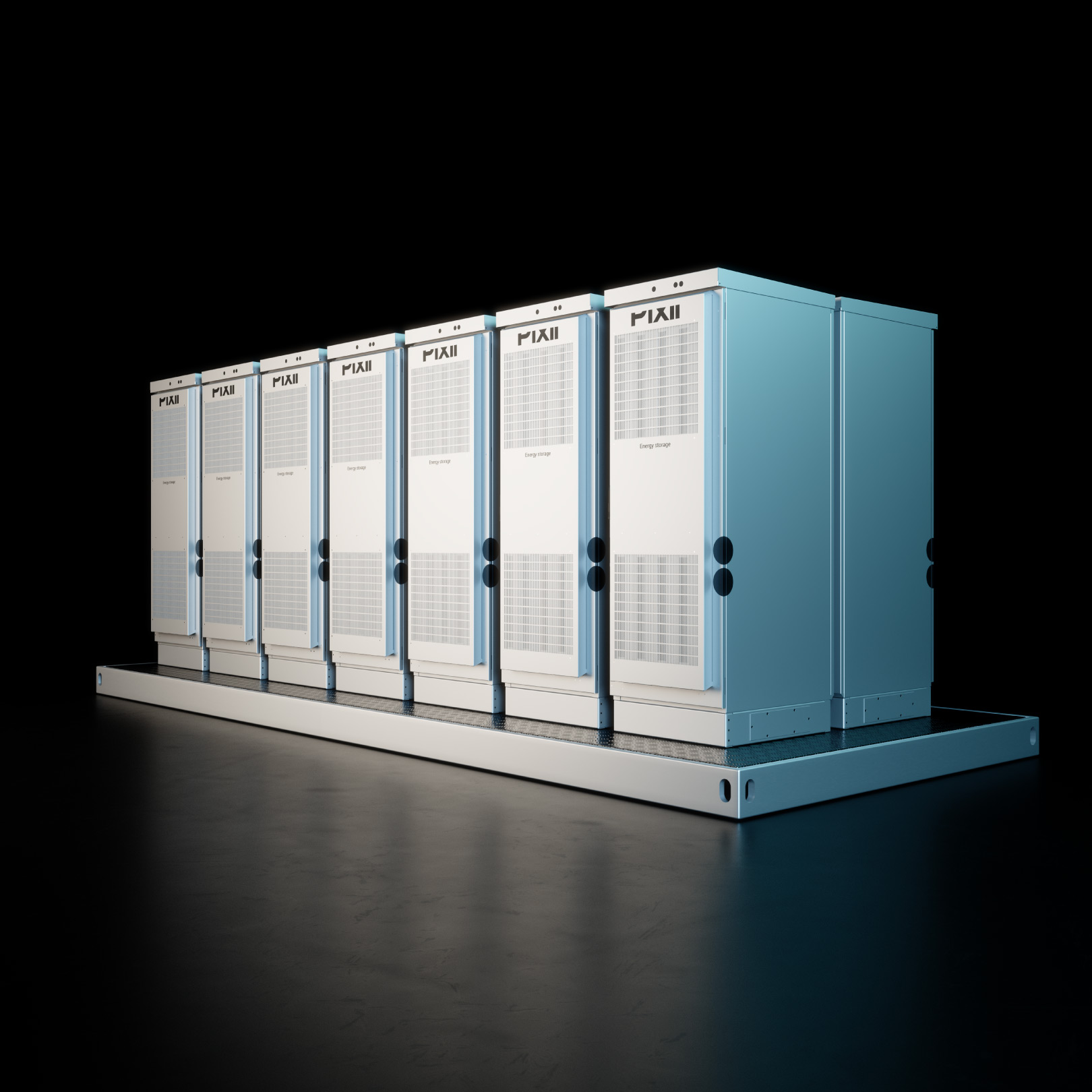

    The Power Base 600 is a robust energy storage system on a steel frame with the footprint of a standard ISO 20-foot container. It comes pre-wired and pre-configured to reduce installation cost and delivery time, and can hold up to 12 Pixii PowerShaper2 cabinets, with a maximum power capacity of 600kW

    It allows for a range of energy saving services, like Time Shift and Peak Shaving, and comes fully integrated, enabling you to get the most out of your new or existing solar panels. And with grid support services, like Fast Frequency Support you can take part in the energy flexibility markets and open new revenue streams.

    The system can be configured for a range of battery models and chemistries, to match the requirements of your application. The cabinets can be fitted with air conditioning or fan cooling for hot climates.
    The PowerBase 600 is quick to deploy and can be placed on a leveled ground, or on eight solid resting points, significantly reducing on-site preparations, civil work and installation time. PowerBase is easy to relocate at a later need.

    Battery type Max no: Max kW*) Max kWh*)
    LFP 4,8kWh 120 540kW 576kWh
    NMC 12,9kWh 96 480kW 1,2MWh
    NMC 15,2kWh 96 480kW 1,44MWh
    LFP 5kWh 120 600kW 600kWh

    *) Nominal capacity, Actual capacity depends of application and use-case.

    • Modular and scalable
    • For applications up to 1.2MW
    • Compact energy storage
    • Fast response (charge to discharge)
    • Integrated & battery inverter solution
    • Wide range of functions
    • Galvanically isolated AC to DC
    • 48V battery voltage for ease of service
    Voltage support
    Monitor and maintain ideal line voltage in remote locations at low cost, by using our power management and storage solution as a buffer, enabling you to inject and absorb active/reactive power to and from the grid.
    Peak shaving
    Reduce your demand charges and save cost by shifting your power dependency from grid to battery, shaving the peaks of your power consumption. It also allows you to boost available power without having to upgrade your grid connection.
    Arbitrage
    Support loads from battery when electricity rates are high, and charge battery when electricity rates are low.
    Active and reactive power compensation
    Reduce the operational cost of your network by adding smart energy storage, allowing you to consume or generate, active or reactive power, to improve the performance of your network and minimize energy losses.
    PV self consumption
    Get the most out of your solar investment and reduce your dependency on the grid through smart power management, enabling you to re-direct excess power generation to batteries for later use during peak hours.
    Grid support
    Improve local peak power capacity by increasing maximum power capacity through smart energy storage systems. In locations with temporary overloads, energy storage systems can be installed to cover the overload to avoid having to upgrade larger parts of the grid.
    Frequency support
    Provide first-response frequency support and stabilize the grid. Our power management and storage solution will contribute to even out the deviation from nominal grid frequency by adjusting active power to and from the grid.
    General data
    Max Power (bi-directional)
    Up to 600 kW
    Nominal AC voltage
    400VAC
    Frequency
    50 or 60Hz
    Max AC current (50kW):
    4 x 240A
    Nominal DC voltage
    48VDC
    Steel S235
    C5-M 320 μm Painting, RAL7035
    Maximum operating temperature
    45 °C
    Minimum operating temperature
    -20°C
    Dimensions (w x d x h)
    6,058mx2,438mx2,230m
    Weight (fully equipped)
    10,000-12,000 kg
    Cabinet protetion class
    IP 55
    Non slip aluminum floor cover
    ISO twistlock corner fittings
    Application standards
    Safety
    IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62040-1, IEC/EN 62477, (Batteries) IEC 62619, IEC 62368, UN38.3
    Grid
    AS/NZS 4777-2, 50549-1,TF 3.3.3 B1, EREC G99 (others pending)
    EMC
    IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
    Environment
    ETSI EN 300 019:2-1 (Class 1.2), ETSI EN 300 019:2-2 (Class 2.3), ETSI EN 300 019:2-3 (Class 3.2)
    Documentation and downloads
    Narrow your search by:
    Your filters:
    File name
    File type
    Language
    Building blocks
    How does it work?
    With cutting-edge technology, the Pixii modular energy storage solution gives you a wide range of functions, allowing you to unleash your growth potential.
